Student Forges for use with Coal

Side Draft Hoods and Brick Topped Forging Tables

 Designed by Dick Nietfeld, Blacksmith Class Instructor

Hoods are 14 gauge Stainless Steel.  All chimneys are 14 inch pipe.

Fronts of hoods are plumb above the hood side of firepot.

--These hoods do not have, nor need, smoke shelves--

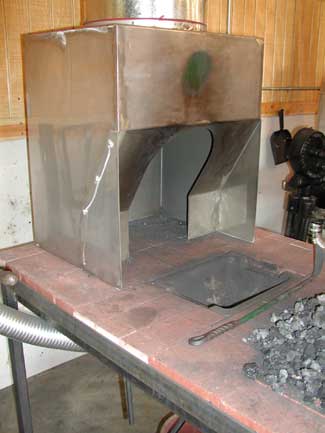

Style # 1with removable draft side shields



All brick topped tables are 32" high, 34" wide, and 54" long

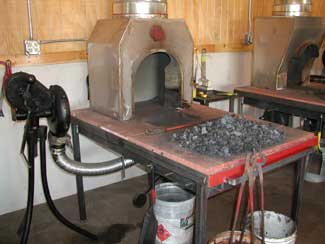

Style #1  Room for coal on all 4 sides of the firepot

Hood opening size:  16" high, 10" wide

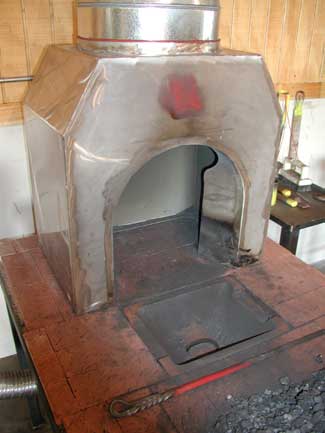

Style #2

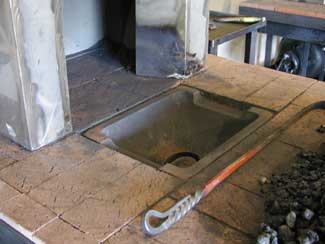

The top of all firepots are flush with table surface

Style #2  Room for coal on all 4 sides of the firepot

Style #2

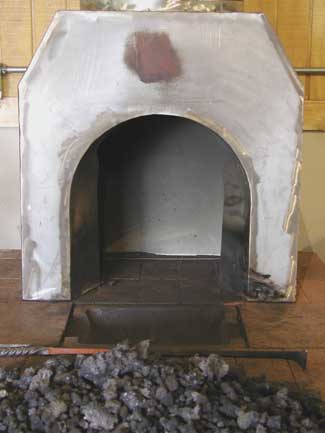

Hood Opening Size:  16" High, 10" Wide @ Back, 15" Wide @ Front

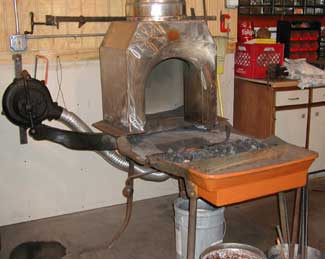

Style #2 on old Railroad Forge

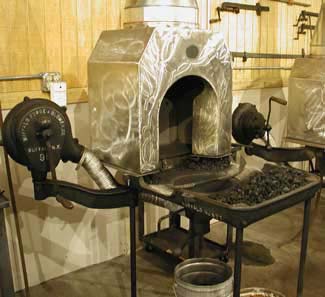

Style #2 on old Buffalo Forge

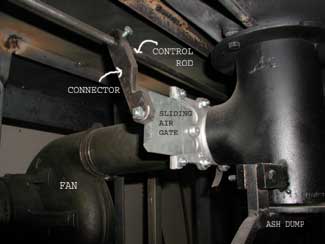

Sliding Air Gate Configuration on Fan Blown Forge

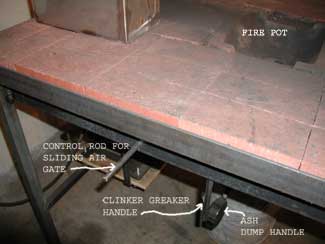

The 3 Handles on a Fan Blown Forge
